Description

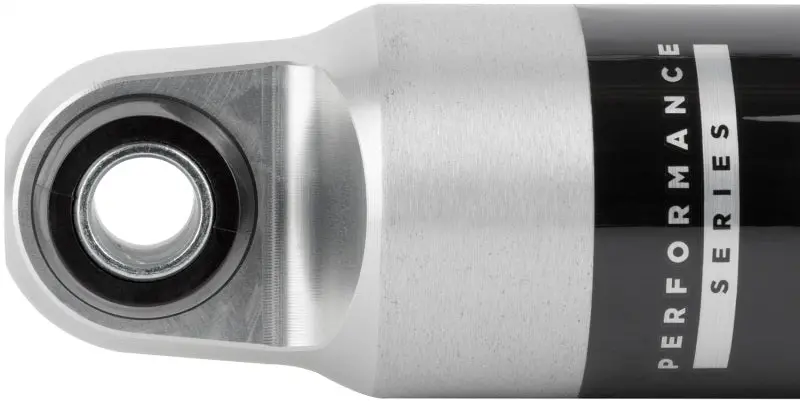

2004–2020 Ford F-150 Rear FOX 2.0 Performance Series Shock (4–6″ Lift)

Upgrade your rear suspension with the FOX 2.0 Performance Series shock, engineered specifically for the 2004–2020 Ford F-150. These shocks feature the latest in shock technology to transform the performance of your truck, combining race-proven damping control with a smooth, predictable ride both on and off-road. The precision impact-extruded aluminum body increases cooling capacity and will never rust, while the Internal Floating Piston (IFP) mono-tube design separates shock oil from high-pressure nitrogen gas to eliminate aeration and maintain consistent performance. Paired with a race-developed high-flow piston and application-specific valving, this shock delivers controlled, reliable handling even in the toughest conditions.

---

Key Features

• Vehicle-specific tuning for optimized ride quality and performance
• 2.0” impact-extruded aluminum body for superior heat dissipation
• Internal Floating Piston (IFP) design separates oil and nitrogen gas
• Race-developed high-flow piston for consistent damping
• Application-specific valving for maximum control and comfort
• Black anodized CNC-machined aluminum components
• Clear-anodized body resists corrosion and wear over time

---

Specifications

• Series: FOX Performance Series
• Position: Rear
• Lift Range: 4–6″
• Travel: 12.6″
• Extended Length: 32.82″
• Compressed Length: 20.2″

Construction Details

• Shock Body: 2.0” 6061-T6 clear anodized aluminum (one-piece)
• Shaft: 5/8″ hard chrome plated heat-treated alloy steel
• Piston: High-flow, race-developed design
• Valving: Application-specific
• Seals: Redundant sealing system (main seal, wiper seal, scraper seal)
• Components: Black anodized CNC-machined 6061-T6 aluminum

Mounting

• Top Mount: Eyelet
• Bottom Mount: Eyelet

---

Fitment

Fits:

• 2004–2020 Ford F-150 (Rear)
• Drive Type: 4WD & All models
• Lift Compatibility: 4–6″ rear lift systems

---

Installation Notes

• Direct replacement for properly lifted applications
• Designed for use with 4–6″ rear lift setups
• Installation time: 1–2 hours
• Basic hand tools required
• Reuses factory mounting locations

---
