Description
Description

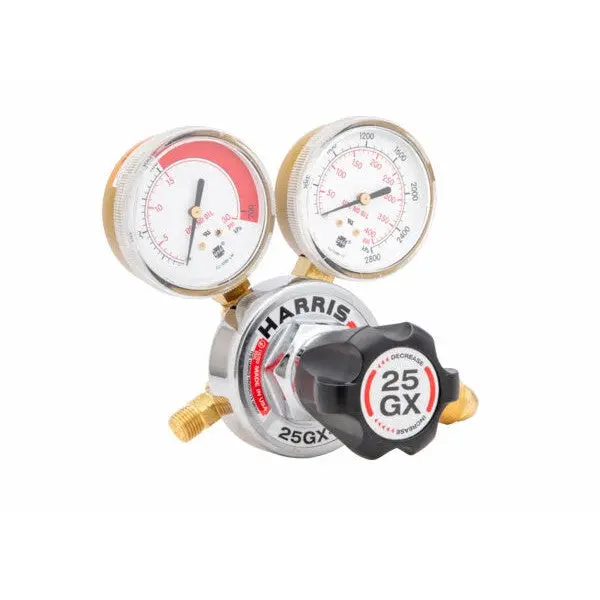

Model 25GX single-stage regulator is designed to be the next generation workhorse of the Harris industrial line. It features larger, easy-to-read gauges and an ergonomic adjusting knob that also shields the adjusting mechanism from contaminants. Conveniently packaged in clamshell for point-of-purchase display.
- High end features for economical price
- Workhorse of Harris industrial regulator line
- Ergonomic ABS plastic knob for easy grip and precise adjustment
- Brass body and electroless nickel=plated zinc bonnet for longer service life
- Neoprene diaphragm for improved pressure control
- 2.5 in. Steel dual scale easy-to-read gauges
- One-piece encapsulated seat design with internal filter to protect the PTFE Teflon® seat from particulate contamination
- UL® listed
- Conveniently packaged in clamshell for point-of-purchase display
Specifications
Equipment
| Adjusting Knob | ABS plastic |
| Body | Brass |
| Bonnet | Chrome plated zinc |
| Certification | CGA E-4 UL® listed |
| Cv | 0.17 |
| Delivery Pressure Gauge (PSIG) | 30RZ |
| Delivery Pressure Range (PSIG) | 0 – 15 |
| Diaphragm | Neoprene |
| Duty | Medium to heavy |
| Gas / Gas Service | Acetylene |
| Gauges | 2.5″ Steel dual scale |
| Inlet Connection | CGA 510 |
| Maximum Inlet Pressure (PSIG) | 500 |
| Nozzle | Brass |
| Outlet Connection | 9/16″ – 18 LH |
| Pressure Regulation PSIG/100 PSIG | 0.20 psig |
| Recommended Items/Accessories | Steel Gauge Guard – Red (Fuel) – PN 4300238 Steel Gauge Guard – Green (Oxygen) – PN 4300239 |
| Seat | PTFE Teflon® |
| Supply Pressure Gauge (PSIG) | 400 |
