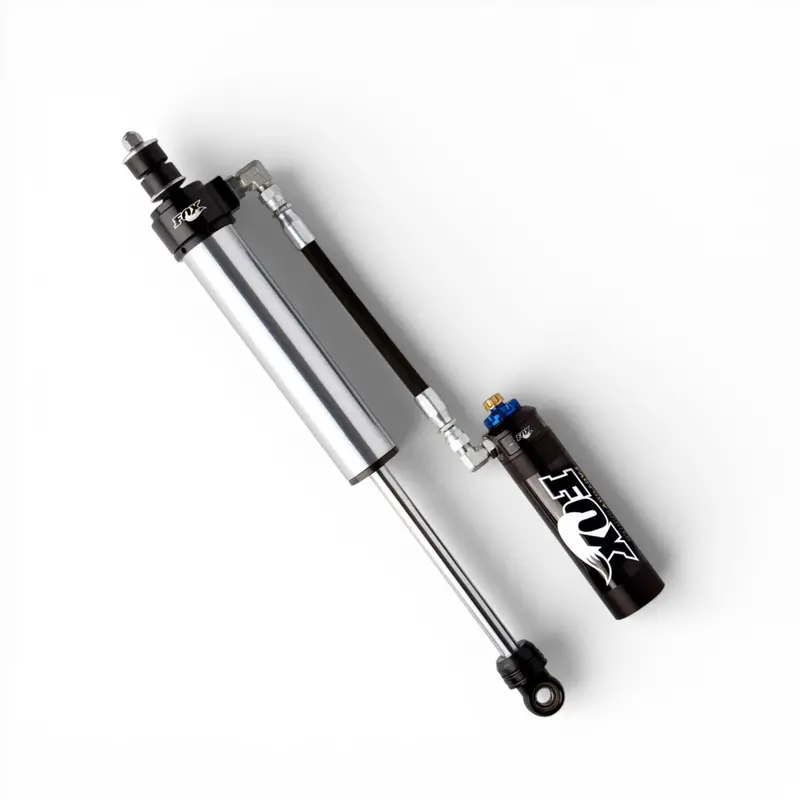

2014–2025 Ram 2500/3500 4WD FOX Factory Race Series 2.5 Reservoir Front Shock (0–1.5″ Lift)

Upgrade your 2014–2025 Ram 2500 or 3500 4WD with FOX Factory Race Series 2.5 Reservoir Smooth Body shocks, engineered to deliver enhanced ride quality and the precise control you need when heading off the pavement. Drawing directly from FOX’s Off-Road race shock technology, these shocks have been thoroughly refined in brutal competition environments that most drivers will never encounter. FOX athletes continuously push the limits in racing conditions, developing race-proven performance that you can bolt directly onto your truck.

The external reservoir increases oil and nitrogen capacity for improved damping consistency and faster heat dissipation while delivering a bold, race-inspired look. Designed as a complete bolt-on solution, the Factory Race Series provides improved damping control across varying terrain, whether on the highway or off-road.

---

Fitment

Fits:

• 2014–2025 Ram 2500 4WD

• 2014–2025 Ram 3500 4WD

Position: Front
Drive Type: 4WD
Lift Height Compatibility: 0–1.5″

---

Installation

• Direct bolt-on replacement

• Professional installation recommended

Estimated Install Time: 2–3 hours

---

Specifications

Series: Factory Race
Travel: 7.77″
Front Lift Height: 0–1.5″

Body: 2.5″ smooth bore zinc-plated seamless steel body
Body Plating: Zinc-plated and double-clear coated for long-lasting finish
Components: Black-anodized, CNC-machined 6061-T6 billet aluminum
Shaft: 7/8″ hard chrome plated, heat-treated alloy steel
Piston: Race-developed high-flow piston design
Valving: Application-specific valving

Seals: Redundant sealing pack system (main seal, wiper seal, scraper seal)
Bearings: PTFE-lined, heat-treated alloy steel spherical

Extended Length: 21.97″
Compressed Length: 14.2″

Top Mount: Stem top
Bottom Mount: Eyelet
